Panasonic Lead Component Insertion Machine RH5

Payment Type: T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Bag/Bags

Basic Info

Model No.: NM-8244R, NM-8244S, NM-8244T, NM-8245R, NM-8245S, NM-8245T

Additional Info

Packaging: Vacuum packing in wooden cases

Brand: Panasonic

Transportation: Ocean

Place of Origin: Japan

Port: Hong Kong

Product Description


Model ID RH5
PCB dimensions (mm) M:  50 x 50 to 330 x  250 LL:  50 x  50 to  508 x 381
Max. speed *1 0.25 s/component to 0.6 s/component
No.of component inputs 40 / 60 / 80
PCB exchange time about 2.5 s to about 3.5 s (Room temperature 20°C)
Insertion direction 2 directions (0 °, 90 °)
Electric source *2 3-phase AC 200 V, 5 Kva
Pneumatic source 0.5 MPa, 120 L/min (A.N.R.)
Dimensions (mm) W: 3,125 / 4,140 / 5,160 * D: 1,860 * H: 1,650
W: 3,125 / 4,140 / 5,160 * D: 2,110 * H: 1,600
Mass  2,500/2,700/2,900 2,600/2,800/3,000

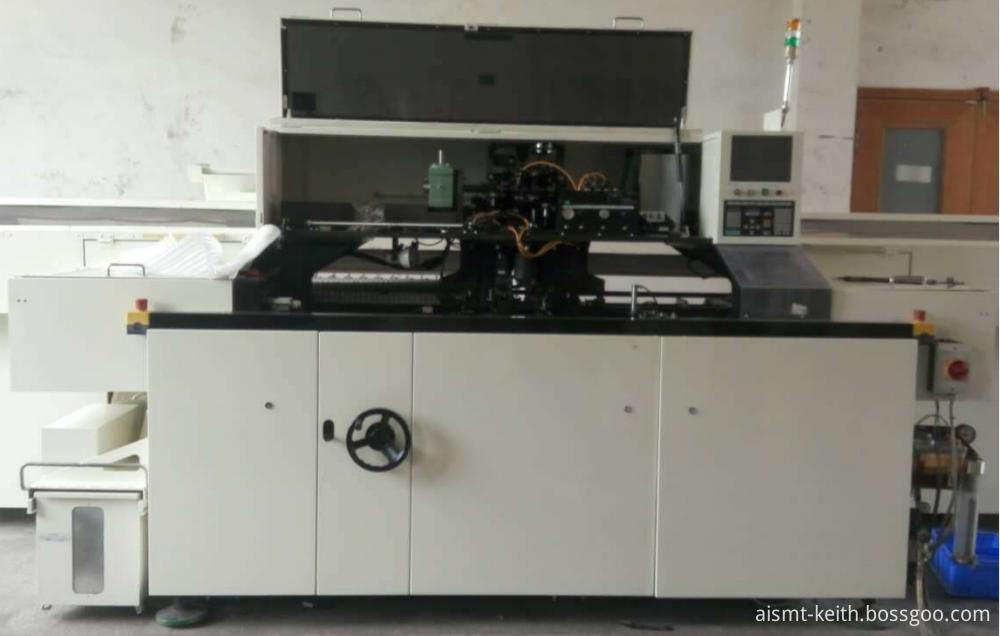

Panasonic Machine Rh5

      Shenzhen Keith Electronic Equipment Co., Ltd." located in Baoan District, Shenzhen. It is a supplier of AI and SMT equipment, spare parts,
consumables and auxiliary consumption materials in China. Over the years, we have provided advanced equipment and parts for our customers
to ensure high-quality service. And for exporting market, we are planing to developing Europe, North America, South America, Southeast Asia,
India and where need SMT equipment spare parts.
     Business philosophy: cooperation, win-win, innovation, mutual assistance
     We have been adhering to the brand management concept of "focusing on product quality and customer needs", through the implementation
of open innovation, excellent operation management, human resources development and other strategies, to comprehensively construct the core
competitiveness of the company, create customer and social values, and win the unanimous praise of the vast number of customers and society.
    Main products:
    Panasonic Insertion Machine, Panasonic Insertion Machine Parts, Panasonic Placement Machine, Panasonic Placement Machine Parts, Panasonic
Feeder & Feeder Parts, Feeder Trolley, SMT Squeegee etc. To learn more about our products, please contact us through the following email address,
look forward to your cooperation!
