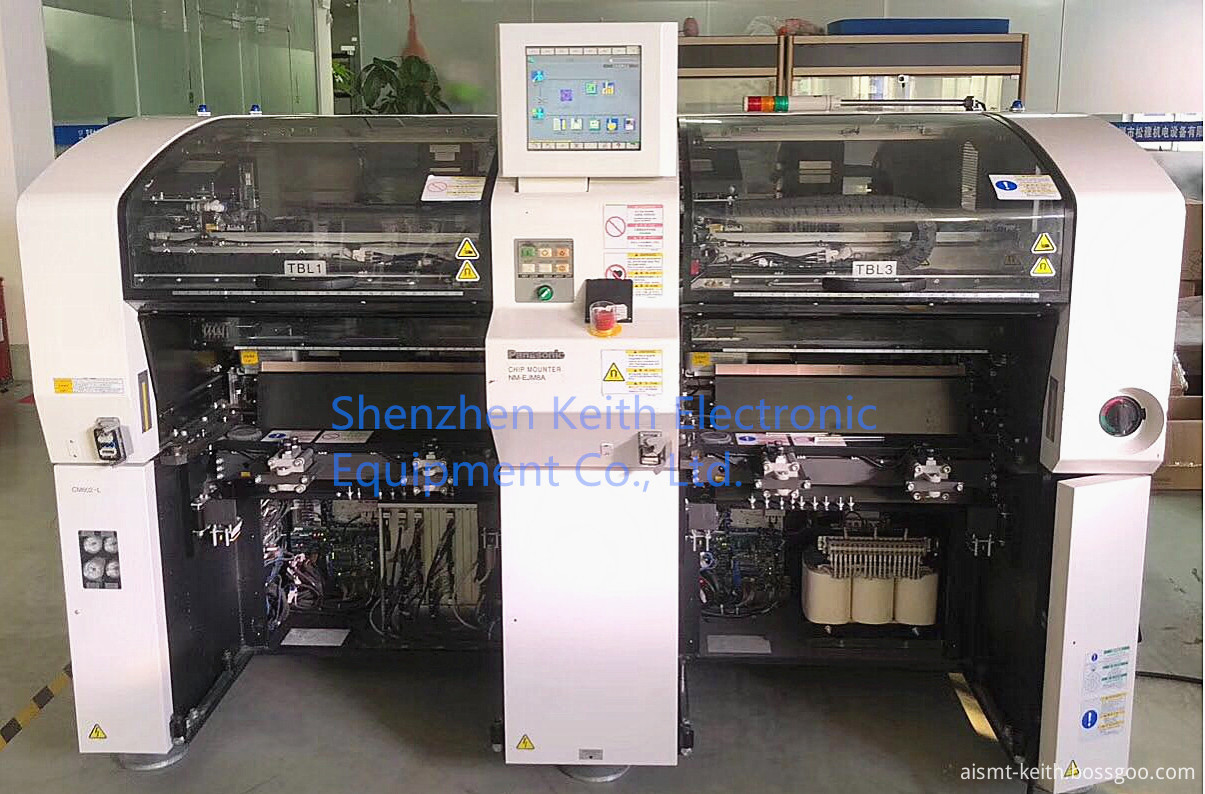

Panasonic Chip Mounter CM602-L

Payment Type: T/T
Incoterm: FOB,CIF,EXW
Min. Order: 1 Bag/Bags

Basic Info


Model No.: CM602-L


Additional Info


Packaging: Vacuum packing in wooden cases

Brand: Panasonic

Transportation: Ocean

Place of Origin: Japan

Port: Hong Kong


Product Description

Panasonic Chip Mounter CM602-L


Features & Benefits
One platform solution for any kind of production
Commonality with existing equipment
Linear motor drive increases reliability and reduces maintenance
Wide component capability from 0402 (01005) chips to 90 x 100mm on up to 18" x 20" boards


Specifications

Model ID

CM602-L
PCB dimensions (mm) L 50 x W 50 to L 510 x W 460
High-speed head 12 nozzles
Max.speed 100 000 cph (0.036 s/chip)
Placement accuracy ±40 µm/chip (Cpk1)
Component dimensions (mm) (01005") 0402 chip *5 to L 12 mm × W 12 mm × T 6.5 mm
High-flexibility head LS 8 nozzles
Max.speed 75 000 cph (0.048 s/chip)
Placement accuracy ±40 µm/chip, ±35 µm/QFP 24 mm,
±50 µm/QFP <24 mm (Cpk1)
Component dimensions (mm) (01005") 0402 chip *5 to L 32 mm × W 32 mm × T 8.5 mm *8
When the generalized Ver.5 is optionally selected (01005")0402 chip *5 to L 100 mm × W 50 mm × T 15 mm *6
Multi-functional head 3 nozzles
Max.speed 20 000 cph (0.18 s/QFP)
Placement accuracy ±35 µm/QFP (Cpk1)
PCB exchange time 0.9 s (Board length:up to 240 mm Under optimum conditions)
Electric source 3-phase AC 200, 220, 380, 400, 420, 480 V, 4.0 kVA
Pneumatic source *1 0.49 MPa, 170 L /min(A.N.R.)
Dimensions (mm) W 2,350 x D 2,290 *2 x H 1,430 *3
Mass *4 3 400 kg
Matsushita Mounter CM602, CM602-L High Speed Module Mounter Features:
1. XY axes are equipped with * new linear motors, which provide * strong power for CM602.
2. The new design and material for the moving arm and head not only reduces the weight,

    but also greatly strengthens the rigidity and makes it more stable in the course of movement.
3. The motion of the X-Y axis is designed with high speed and low vibration.
4. The linear motor adopts a new cooling design scheme, which can be cooled more quickly and

    effectively than other equipment using linear motor under high-speed movement, ensuring the

    operation efficiency of the motor and improving its life.
5.7 kinds of racks can correspond to all braided packaging components from 8mm to 104mm.

   They are widely used in the industry. And according to customer demand, a new 8 mm Single rack is added.
6. Material rack switching in operation, overall switching trolley design, overall switching support pin design

    and so on can greatly improve the efficiency of equipment operation and type switching time.
7. While improving the production efficiency, the mature design of CM402 is used in software,

    hardware and operation to ensure the interchangeability with CM402.

Panasonic Machine CM602
